Application field
Especially suitable for measuring local and remote IO in PWC or DCS systems Monitoring and control can be applied in asphalt mixing plants, chemical, plastic, metallurgical, printing, textile, and food industries Industries such as products and packaging.
Feature
Compact size, DIN35 rail installation
Can set addresses to enable multiple devices to connect to the CAN network
Distributed installation
Digital input/output:
Model DS700-8DI8DO: 8DI isolated input, 8DO isolated output
Model DS700-24DI: 24 DI isolated inputs
Model DS700-24DO: 24 DO isolated outputs
Technical Specifications
project | Technical Specifications |
power supply | DC 24V (18V-30V) |
humidity | ≤ 90% relative humidity (no condensed water) |
weight | ≈0.5kg |
isolation | 1500VDC |
power consumption | Maximum 10 watts |
Operating Temperature | From -5 ℃ to 45 ℃ (23 ° F to 117 ° F) |
Enter contact type | Passive contact |
Output contact type | solid state relay |
Output contact capacity | 250VAC5A,30VDC5A |
communication interface | CAN1 interface |
communication protocol | Standard CANopen protocol |
Communication address range | 1~99 |
Input sampling speed | Sampling speed up to 1KHz |
power protection | The power supply has good overcurrent, overvoltage, and anti reverse protection functions |

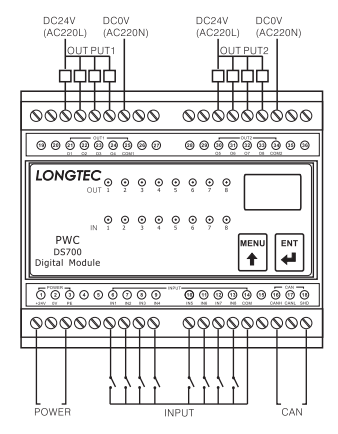

electrical connection

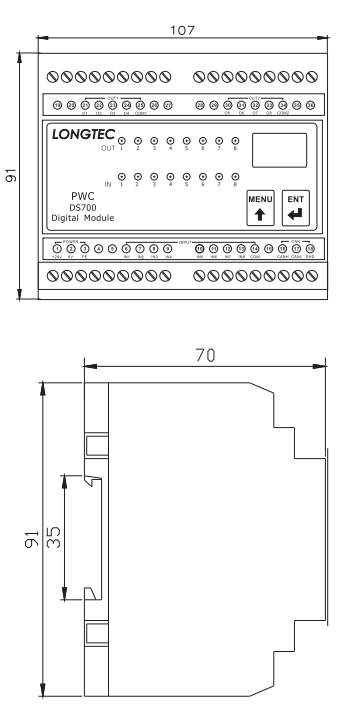

Dimensions (unit: mm)
