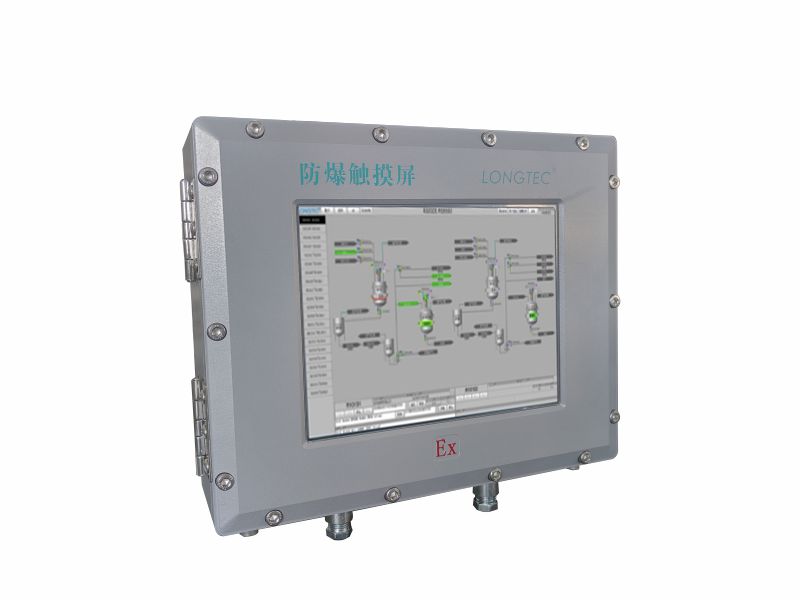

Explosion proof touch control terminal is an explosion-proof human-machine interface operated through a touch screen. The product adopts a 32-bit RISC CPU, has strong storage capacity, and can display various true color graphic formats. Its outstanding processing speed and rich software functions can meet the needs of most users, and can quickly and effectively complete on-site data acquisition, calculation, control and other functions.

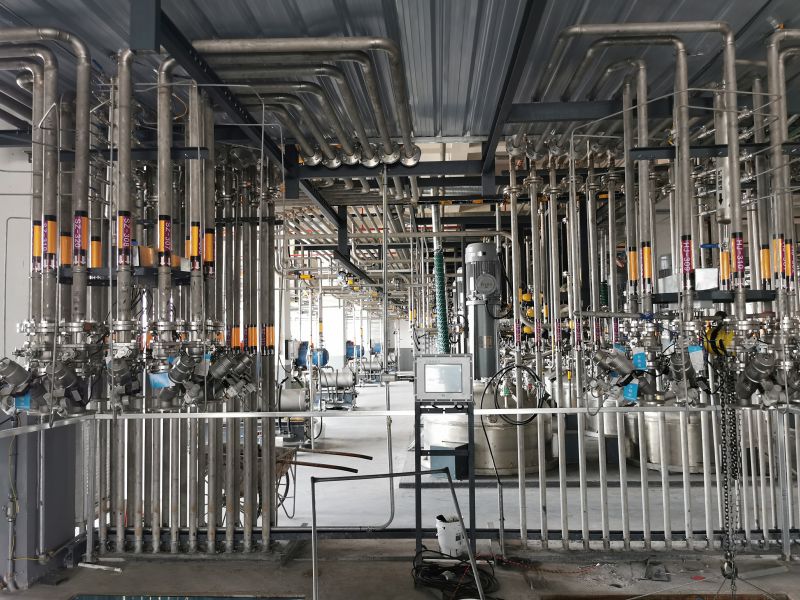

Widely used in explosive hazardous environments such as petroleum, chemical, textile, pharmaceutical, metallurgical, and electric power.
Feature
Safe and explosion-proof products, suitable for various explosion-proof occasions with requirements
Powerful system computing capability
Practical, simple, and convenient human-computer interaction interface
Can provide non-standard customization (ODM) services
Technical Specifications
| Specifications | project | LT8100- Ex (10 inches) | LT8100- Ex (12 inches) |
| display | monitor | 10TFT | 12TFT |
| display | resolution | 1024x600 | 1024x768 |
| display | Backlight type | LED | |
| display | backlight lifespan | >50000 hours | |
| touch panel | type | Four wire resistive type | |
| touch panel | Touch accuracy | Action area length (X) ± 2%, width (Y) ± 2% | |
| processor | CPU | 32bit RISC corter - A8 600MHz | |
| memory | Flash memory | 128MB | 128MB |
| memory | Memory (RAM) | 128MB | 256MB |
| I | USB Host | USB 2.0×1 | USB 2.0×1 |
| I | USB Client | none | USB 2.0×1 |
| I | Ethernet network | 10/100 Base - T×1 | |
| I | serial interface | Con.A:COM2 RS - 485 2w/4w COM3 RS - 485 2w Con.B:COM1 RS - 232/COM3 RS - 232 | COM1:RS - 232/RS - 485 2w/4w COM3:RS - 485 2w |
| perpetual calendar | - | built-in | |
| power supply | input power | 24±20%VDC | |
| power supply | power consumption | 650mA@24VDC | |
| operating environment | Storage environment temperature | -20~60℃（-4~140℉） | |
| operating environment | Operating environment temperature | 0~50℃（32~122℉） | |
| software | - | EasyBuilder Pro | |

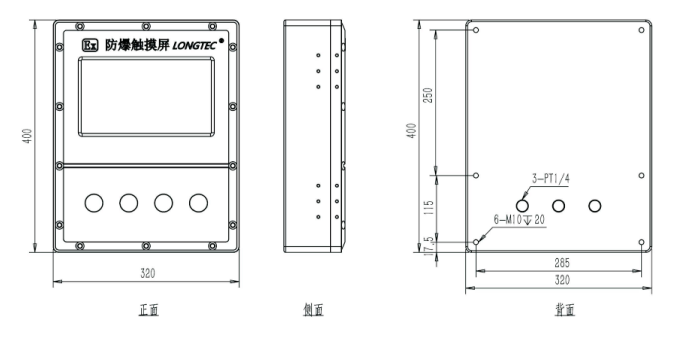

Dimensions (unit: mm)
