Application field
The AS700 high-precision analog input and output, when combined with PWC systems or DCS, can be flexibly applied in various industrial automatic control scenarios, such as chemical, plastic, metallurgical, printing, textile, food, packaging and other industries.
Feature
Low temperature drift, high precision
6-digit LED digital display
Compact size, DIN35 rail installation
Analog input/output:
Model AS700-4AI: Four channel analog input
Model AS700-2AI2AO: 2-channel analog input, 2-channel analog output
Model AS700-4AO: 4-channel analog output
Technical Specifications
project | Technical Specifications |
power supply | DC 24V (18V-30V) |
power consumption | Maximum 5 watts |
Operating Temperature | From -51 to 451 (23 ° F to 117 ° F) |
humidity | 90% relative humidity (without condensation) |
weight | ≈0.5kg |
Analog input | 4~20mA, Input impedance 250 Ω, 1-5V |
indicator light | Display channel and communication status |
Analog output | 4~20mA, Drive capacity 500 Ω, 1-5V, 1-10V |
display range | 0-9999 |
temperature coefficient | <=(0.0008% of reading+0.3 divisions) |
nonlinear error | <=0.005% of full scale |
sampling method | Delta sigma method |
sampling rate | Up to 100 times per second |
Internal resolution | 16,000,000 |
Maximum Display Scale | 9999 divisions |
Signal input range | 0~5V/0~10V、0~20mA、4-20mA |

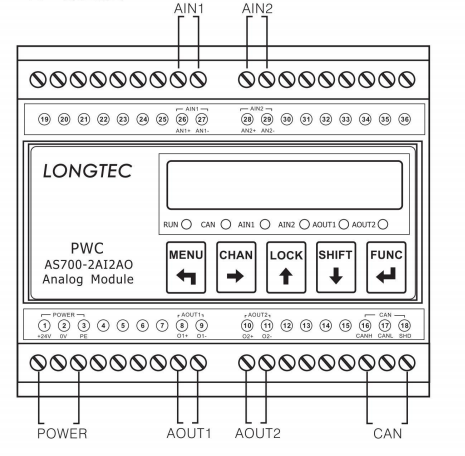

electrical connection

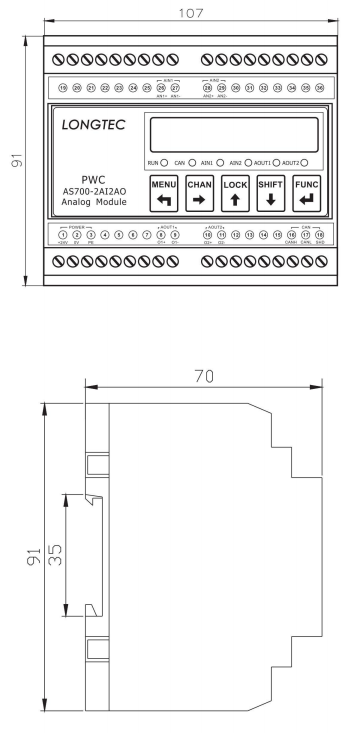

Dimensions (unit: mm)
