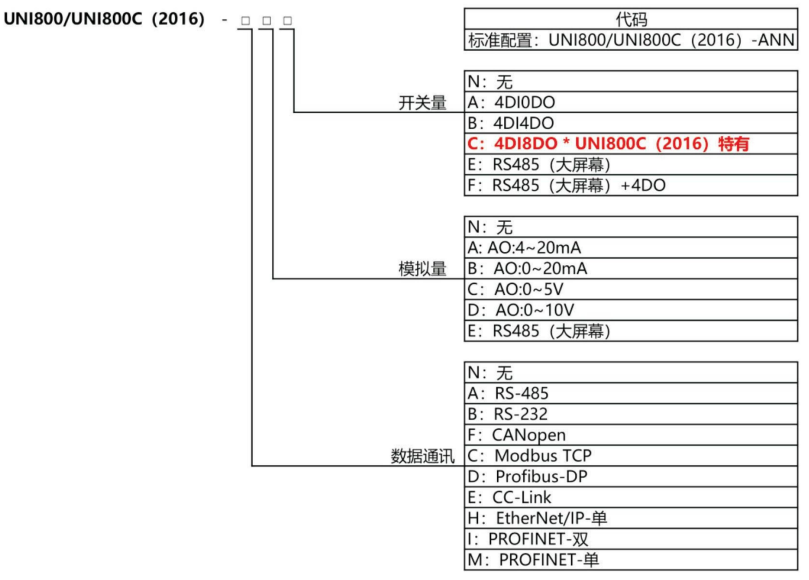

Selection Table
Note: When selecting A, B, and F for "communication", "switch quantity" cannot be selected as E or F.
② When selecting C, D, E, H, 1, and M for "Communication", only N can be selected for "Analog". When selecting PROFINET module (dual network port), only 4DI0DO or N can be selected for "Switch", and there is no limit for single network port.
③ When selecting N for "communication" and E or F for "switch quantity", only N can be selected for "analog quantity".
Feature
High precision, low-temperature float
Sensor signal fault diagnosis alarm
Support digital/physical calibration
Support calibration free replacement of instruments
Dynamic digital filtering to eliminate the impact of scale shaking
Adopting panel installation method, with small volume and light weight
All metal shell, strong anti-interference ability
Rich communication: RS-232 、RS-485 、CAN 、CC-Link 、PROFINET 、Ethernet/IP 、Modbus TCP 、Profibus-DP
Analog output: 0~20mA, 4~20mA, 1~5V, 0~10V (choose one from four)
Support multiple switch inputs and outputs
Main functions
UNI800(2016)
It mainly has the function of collecting and transmitting weight data, realizing high-speed communication with the upper computer/PLC, and can provide four types of limit comparison signals: high high limit, high limit, low limit, and low low limit.
UNI800C(2016)
It mainly has the function of single/multiple material batching control, which can achieve the sequential cumulative batching of 1-4 materials, each with its own fast and slow addition control process, and has automatic peeling, out of tolerance detection, and automatic correction of drop height.

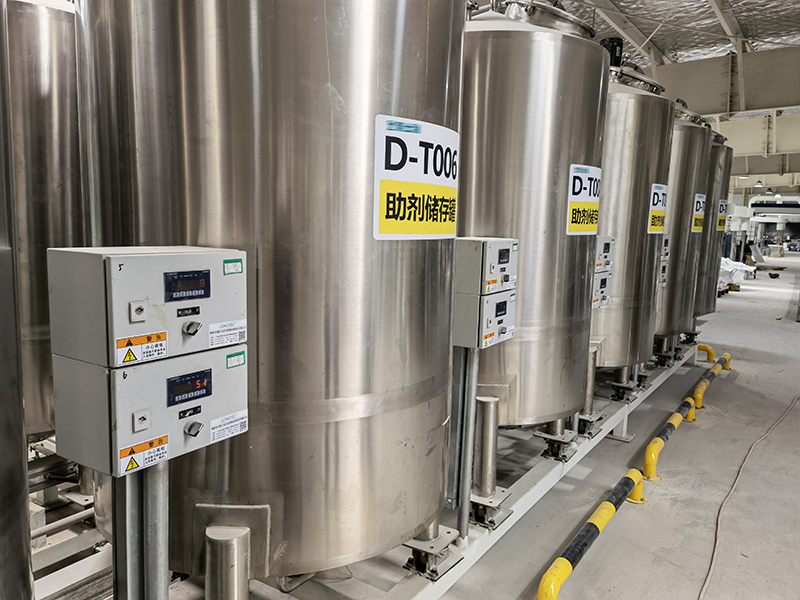

Application field
Suitable for various weighing type material levels, hopper scales, crane scales, hanging scales, tensile and compressive testing machines, and other applications of resistance strain type weighing sensors. Widely used in process weighing in industries such as grain, light industry, metallurgy, building materials, chemical industry, non-ferrous metals, energy, and machinery.
Technical Specifications
project | Technical Specifications |
power supply | DC 24V (18V-36V) |
power consumption | ≤6W |
Operating Temperature | From -5 ° C to 45 ° C (23 ° F to 117 ° F) |
humidity | ≤ 90% relative humidity (no condensed water) |
Overload display | Display 'O.L' |
Applicable sensor types | All resistance strain gauges and weighing sensors |
Sensor input voltage | DC10V ± 5%, can provide a maximum current of 120mA |
Adjustable zero position voltage range | 0.05mV~15.0mV |
sampling rate | Up to 200 times per second |
Internal resolution | 16,000,000 |
analog output | 0~20mA4~20mAI0~5V?~10V |
weight | About 0.6KG |
