Scope of Application: Automatic palletizing of 15L–200L drum-packed products.

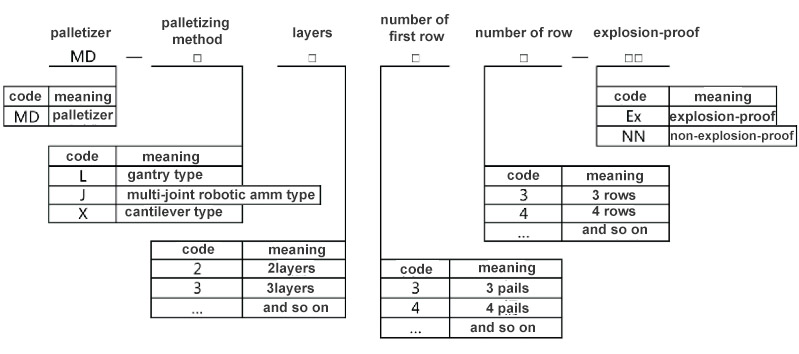

Product Configuration Table
Example: MD-J243-Ex indicates the palletizer parameters as follows: using a multi-joint robotic arm palletizing, stacking 2 layers of barrels, 4 barrels in the first row, 3 rows in total, for explosion-proof environments.
Main Function
Matching with the 15L-200L drum automatic filling line, the finished drums are palletized onto pallets by a robotic arm and then forklifted away;
The whole machine consists of a frame, station sensors, positioning devices, robotic arm, conveyor system, pallet loading system, and depalletizing system;
The stacking quantity can be customized according to customer requirements.
Main Technical Parameter
No. | Item | Performance |
1 | Palletizing Ability | ≥12 pallets/h ，，，which is≥180 drums/h |
2 | Palletizing Speed | 700 drums/hour |
3 | Power Supply | AC380 +10%-15% 50hz±2HZ |
4 | Power | 7.3kw |
